CMI273TWIN

Car-O-Liner CMI273 Mig Mag Welders

Compact, fully digitised welding machine with synergic, preset welding programs and automated functions.


Robust for Advanced Welding
With auto-pulse technology for advanced pulse welding of aluminum and pulse brazing of high-tensile steel. Designed for all materials and individual welding applications, including high strength steel. The exceptional 4-wheel wire feed system provides a smooth, reliable wire feed even on softer wires such as aluminum or MIG brazing.

Digital Synergic Control Panels
Switch On - Press - and Weld!

Twin Torch Versatility
With two torches, the CMI273 Twin offers easy switch-over between welding and brazing operations without having to change hoses, wires, wire drive rolls or gas.

Choose Your Power
The 'Pulse Boost' offers synergic pre-set welding programs and automated functions. The welder is capable of operating on single or three phase power.

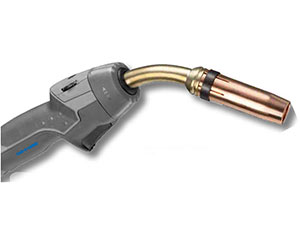

Extend your reach with the MIG-A Twist® welding torch
Comes with the MIG-A Twist torch. The unique, rotatable swan neck of the MIG-A Twist allows access to hard-to-reach places. It is possible to mount different modules on top of the torch for adjustment of the most important welding parameters.
CMI273TWIN Car-O-Liner-CMI273-Twin-Mig-Mag-Welder Torch

CMI273 TWIN PULSE Version:
Auto-Pulse Technology gives optimal strength in every weld in aluminium and high tensile steel. The ‘Pulse Boost’ offers synergic pre-set welding programs and automated functions.

Features & Benefits:
  • Protects heat-sensitive metals with Auto-Pulse technology
  • Saves time with synergic pre-set welding programs
  • Conveniently adjust the weld setting right from the torch
  • Reliably feeds soft wires like aluminum with a precise 4-wheel wire feed system
  • Comfortably accesses hard-to-reach places with adjustable MIG-A twist torch
  • Efficiently switch between key materials with the Tin Wire Feed System on CMI273 Twin - just a click away
  • User friendly, flexible and mobile due to compact design & low weight
  • Energy saving standby function (15-30W idling) gives less CO2 emission and long component life

Technical Specifications:
CMI273 CMI273 Twin
Input voltage +/- 15% 1 or 3 x 230V 1 or 3 x 230V
Fuse 10 A 10 A
Protection class IP 21 IP 21
Duty Cycle 100% at 400 C 175/22.8 175/22.8
Duty Cycle 60% at 400 C 195 204/24.3
Duty Cycle 100% at 200 C 230 230
Duty Cycle 60% at 200 C 245 245
Current Range, A 10-270 A 15-270 A
Dimensions HxWxL cm 55x25x64 96x57x87
Weight Kg 26 55


If you require further information on the Car-O-Liner CMI273 Twin Mig Mag Welder or other Car-O-Liner Equipment either email us or call direct on (09) 525 1000 and ask to speak to Paul Wyatt or Gavin Wild.
