Click image to zoom

NZ $6,700.00
Qty
GUNWASHG60F

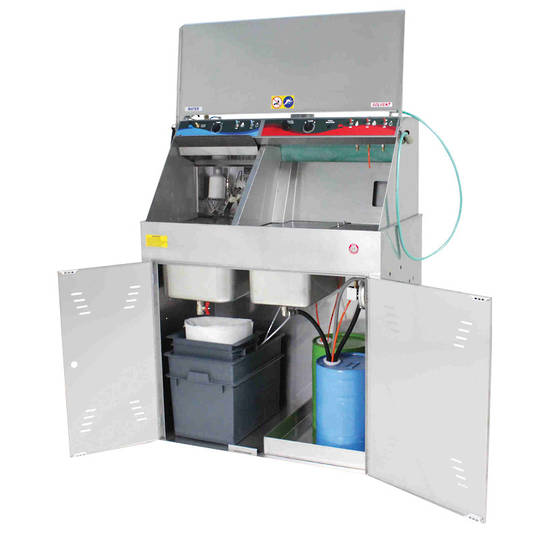

RosAuto G60F Combined Automatic Spray Gun Washer Double

Combi unit, automatic and manual wash of waterborne and solvent-based paint. Comes with PA Pump  & water/ paint separation kit.



Certified CE and ATEX II 2G. Stainless steel. Italian made.


Features:
  • Combi unit, automatic and manual wash of waterborne and solvent-based paint
  • Automatic vapour exhaustion from work area
  • Water zone
       Automatic wash with diaphragm pump feeding recirculating liquid
       Final rinse with clean water fed by Venturi pump and nebulizer
       Air gun for final drying
       Water/paint separation kit included
  • Solvent zone
       Automatic wash with diaphragm pump feeding recirculating liquid
       Final wash with clean thinner fed by an extra diaphragm pump
       Mechanical block of the lid of automatic washing during cleaning cycle
       Wash with Venturi pump feeding recirculating thinner
       Venturi pump feeding clean thinner
       Final wash by nebulizer with clean thinner
       Air pressure regulator for color testing
  • Color tests allowed
  • 100% Stainless steel
  • ATEX II 2G

Technical Specifications:
Dimensions mm 1190 x 690 x 1490 h
Weight Kg 114
N° Spray-guns per washing cycle 2
Steel tank capacity for Water L 50
Exhaust duct dia. mm 150
Operation Pneumatic
Air Pressure Bar Min 6
Max 10
